OVES UBP1K PRO
UBP™ Series – Entry Level Cost-Effective Power System

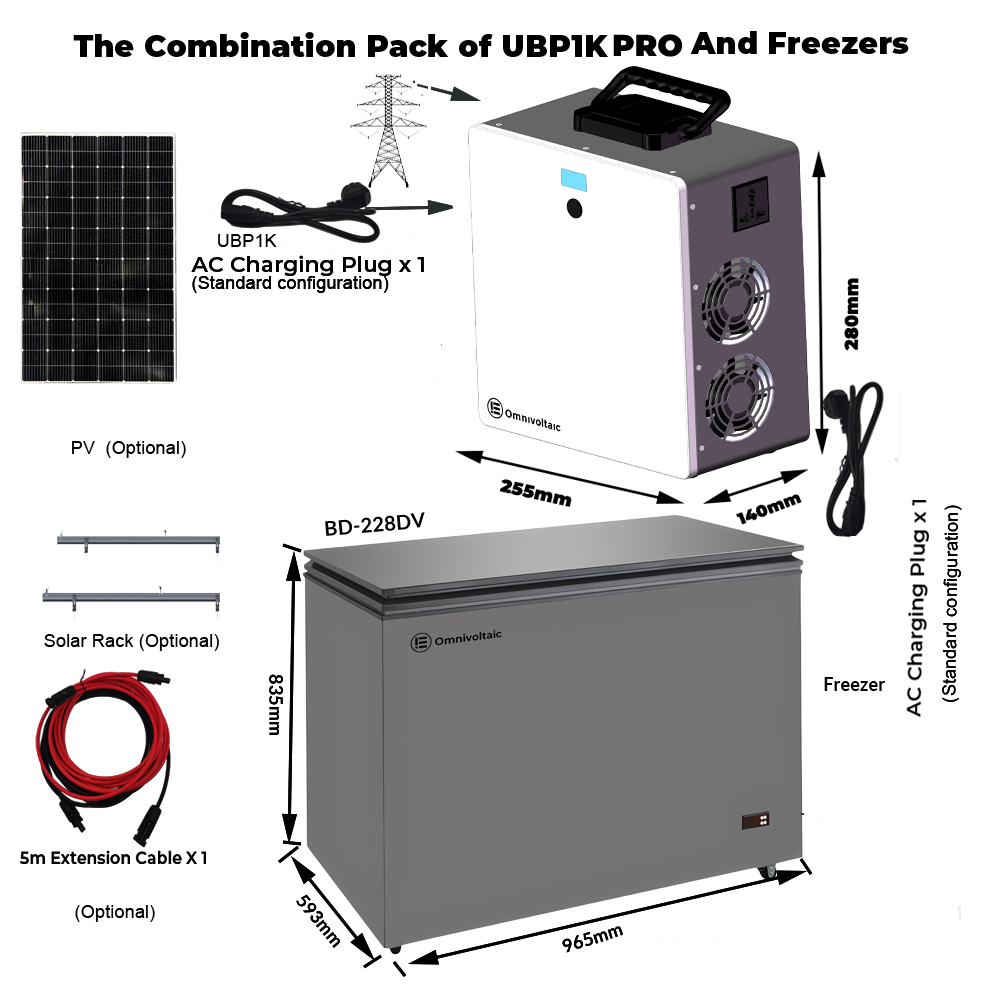

The most cost-effective combination--- PAYG UBP1K Pro and PAYG Freezer
In a power outage scenario, the UBP1K can provide the freezer with electricity for at least 6 hours.
The power consumption of the freezer is extremely low, not exceeding 150W.
When it is in a frozen state, without electricity and with the door not opened, it can maintain the temperature for about 2 days. Thanks to its high-foaming technology, it has excellent sealing performance.

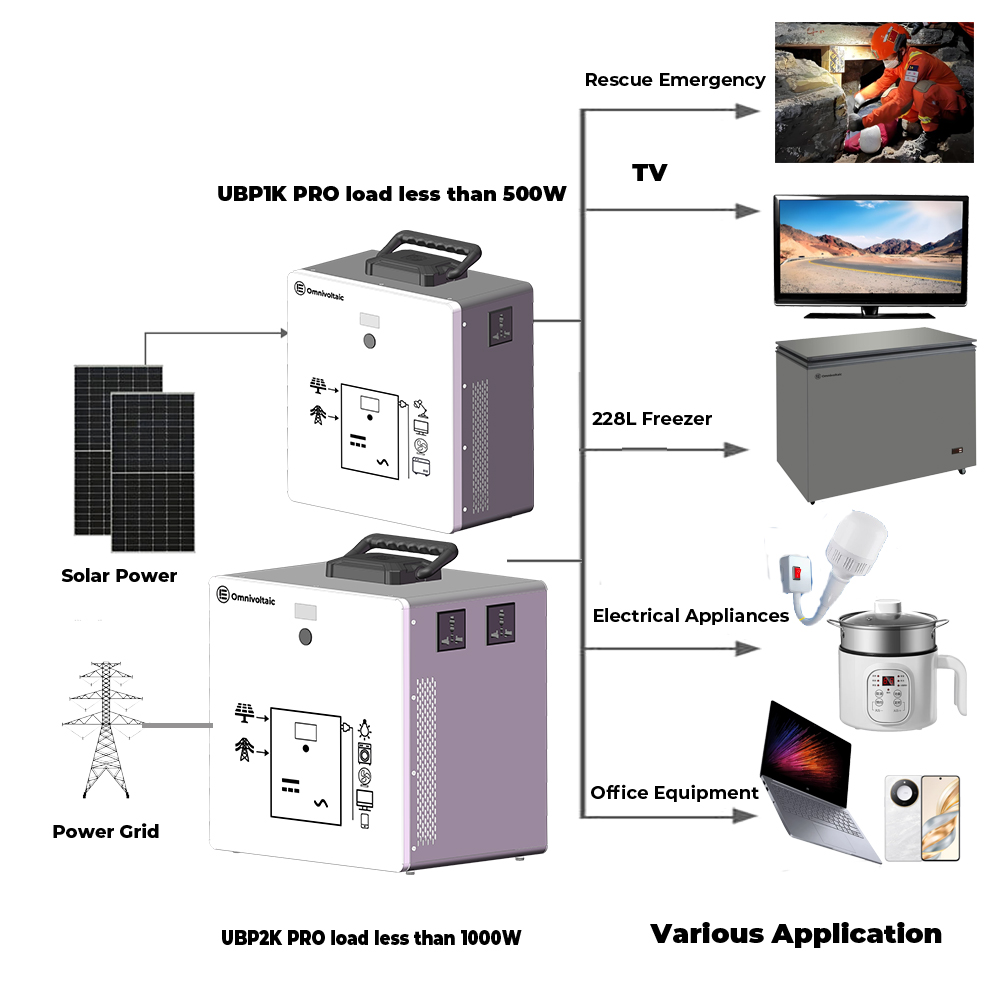

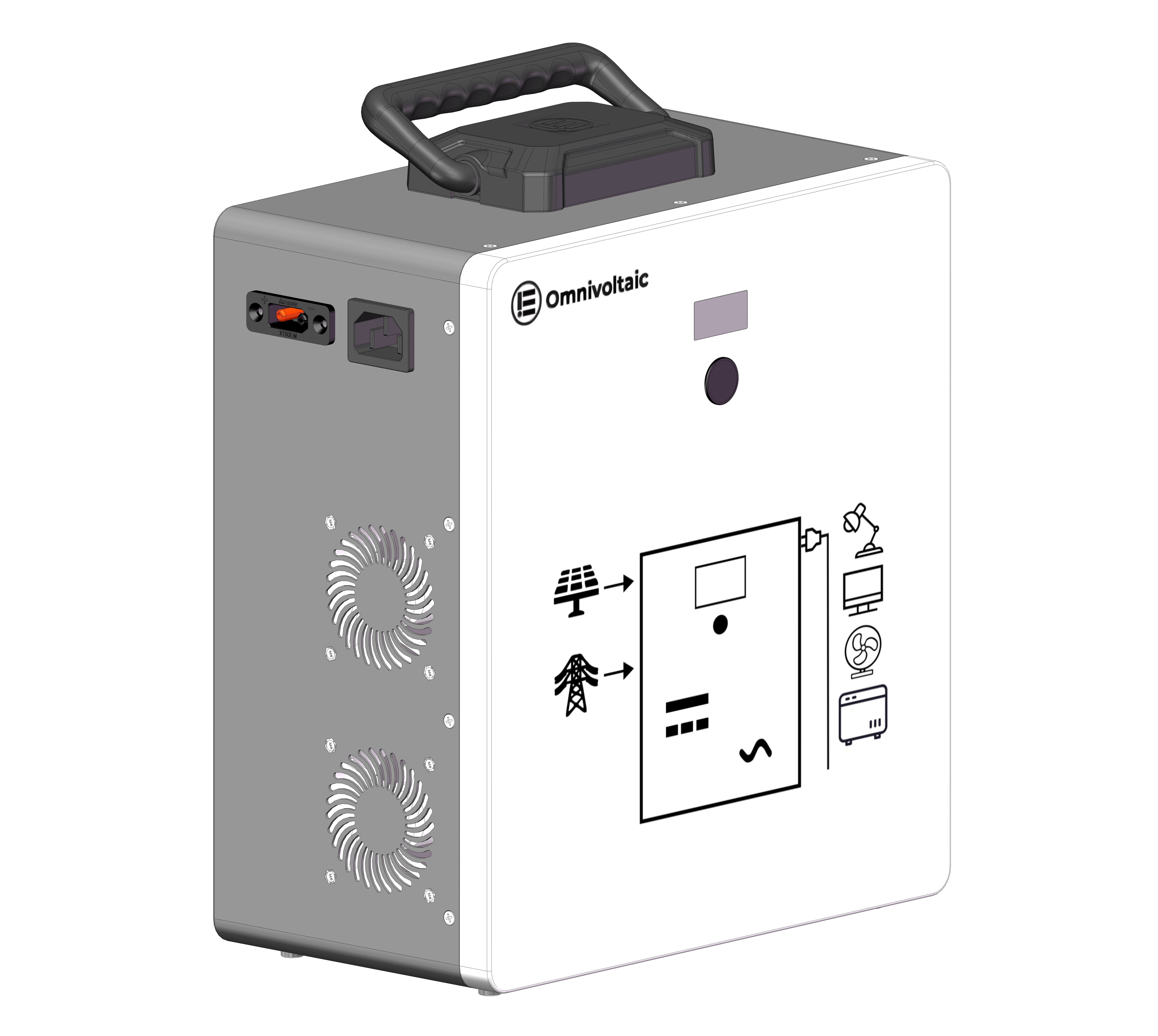

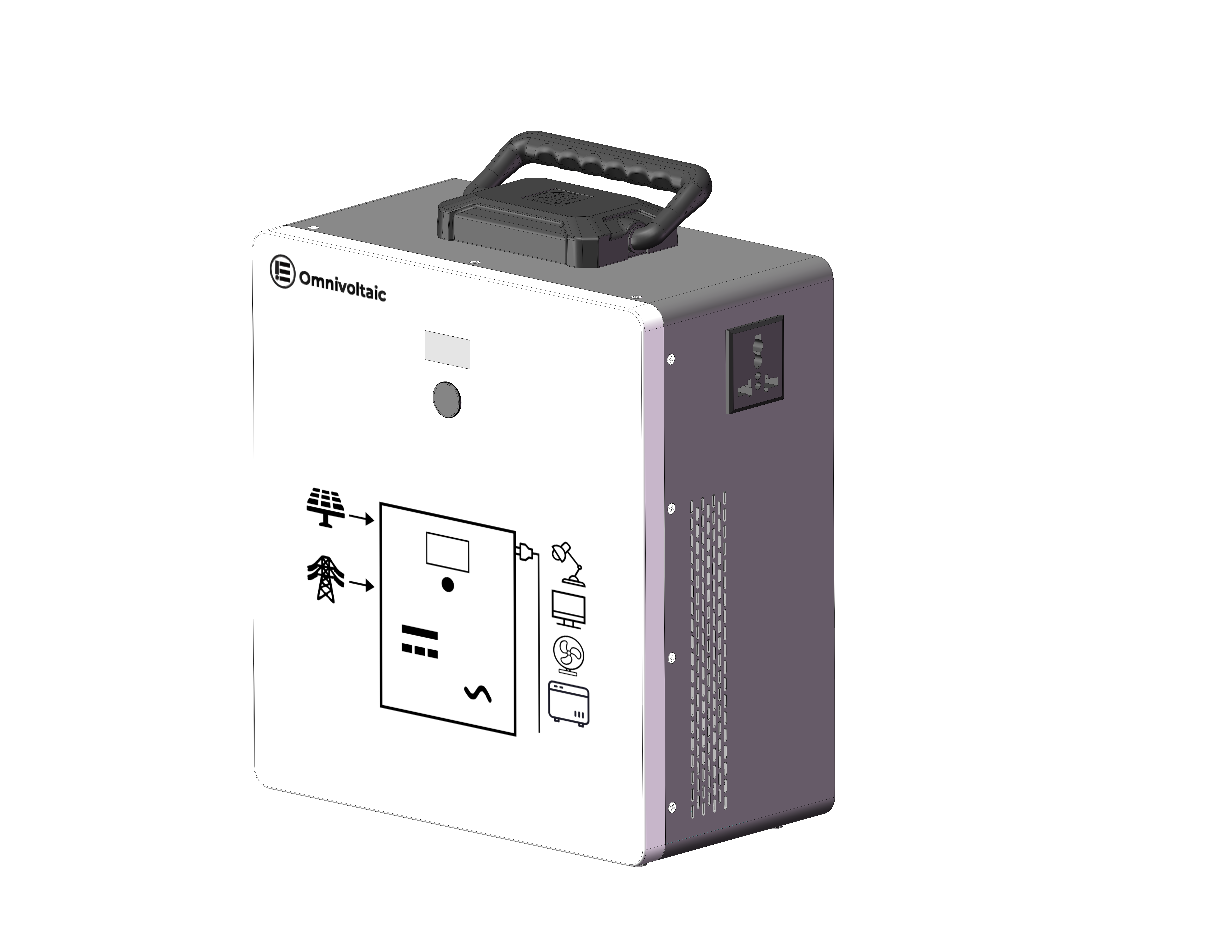

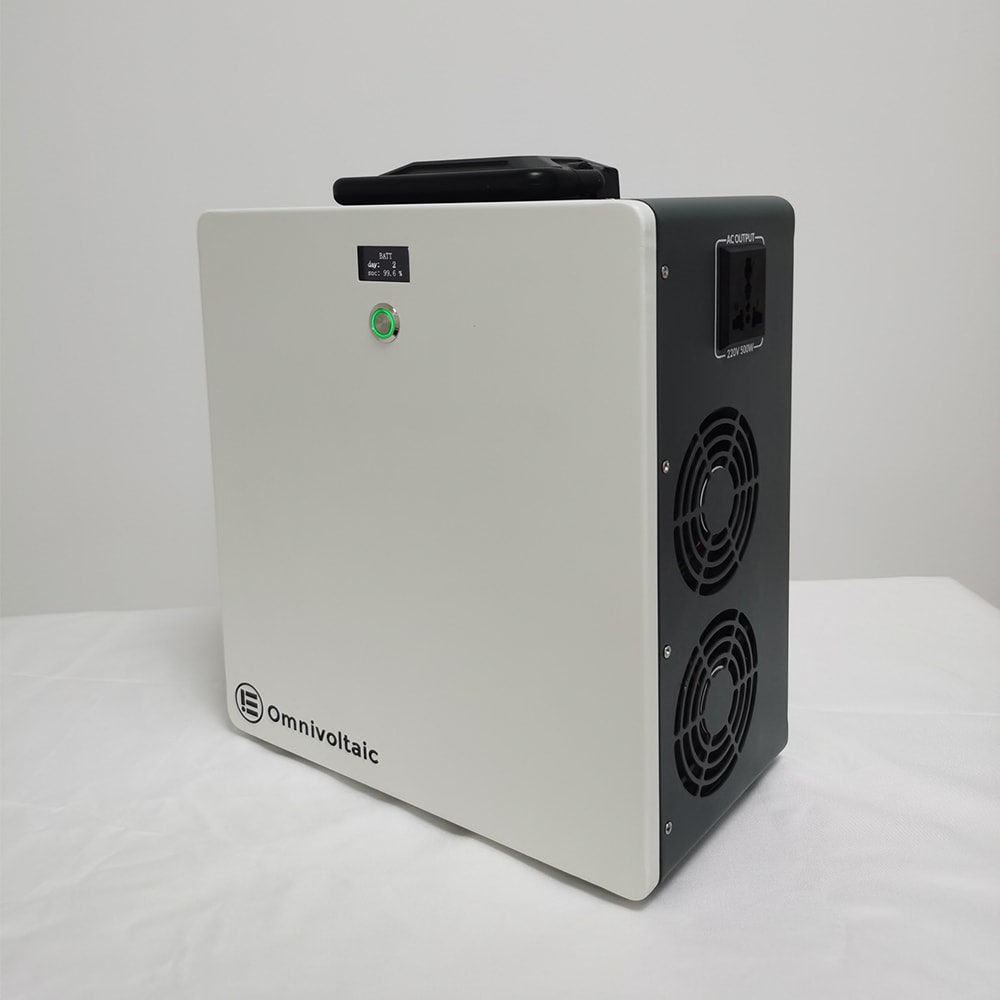

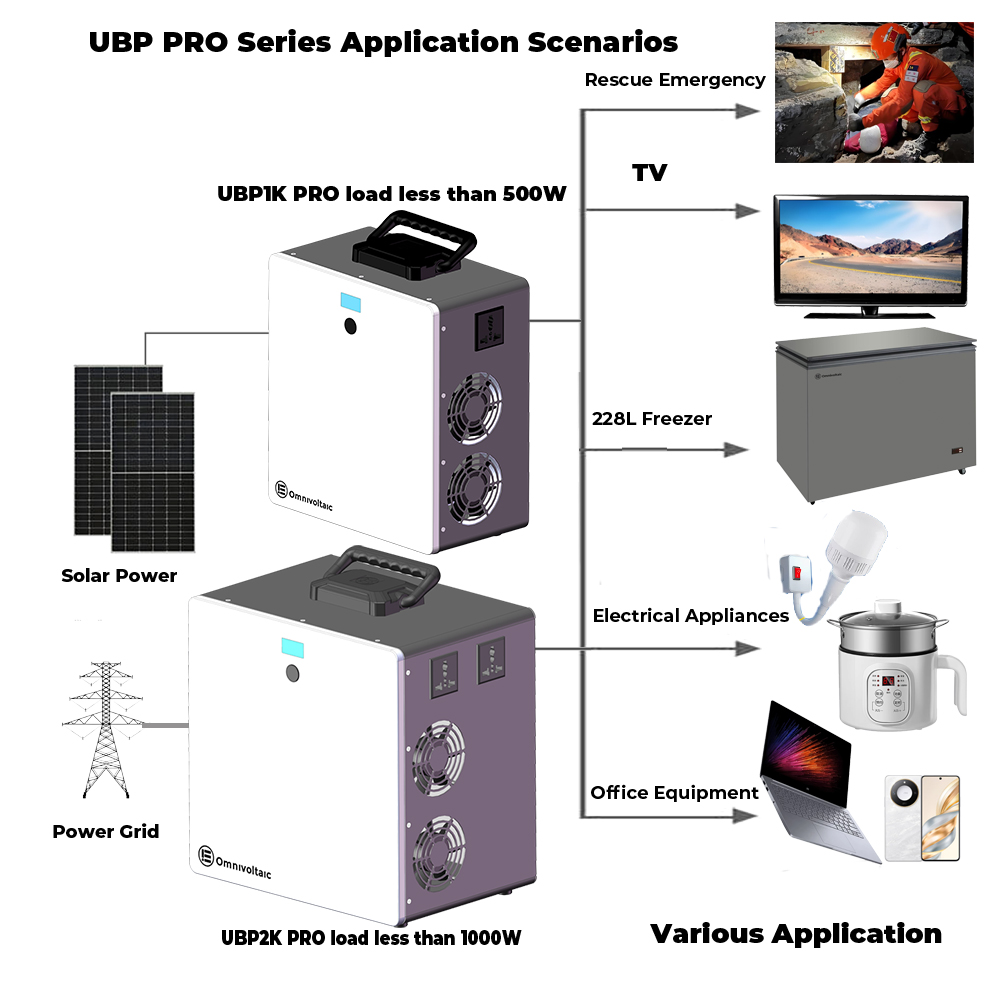

The Unicell Boost Pulsar UBP1K-BLE is a robust energy storage solution, providing 1000Wh capacity and a 500W output, suitable for higher power demands. At 11 kg, it incorporates protections against overcharge, over-discharge, overcurrent, and short circuits. With a 90% AC efficiency and pure sine wave output, it delivers reliable power for home emergency backups, outdoor adventures, and mobile workstations. Whether for off-grid use, camping, or disaster relief, this system offers *cost-effective, long-lasting power.

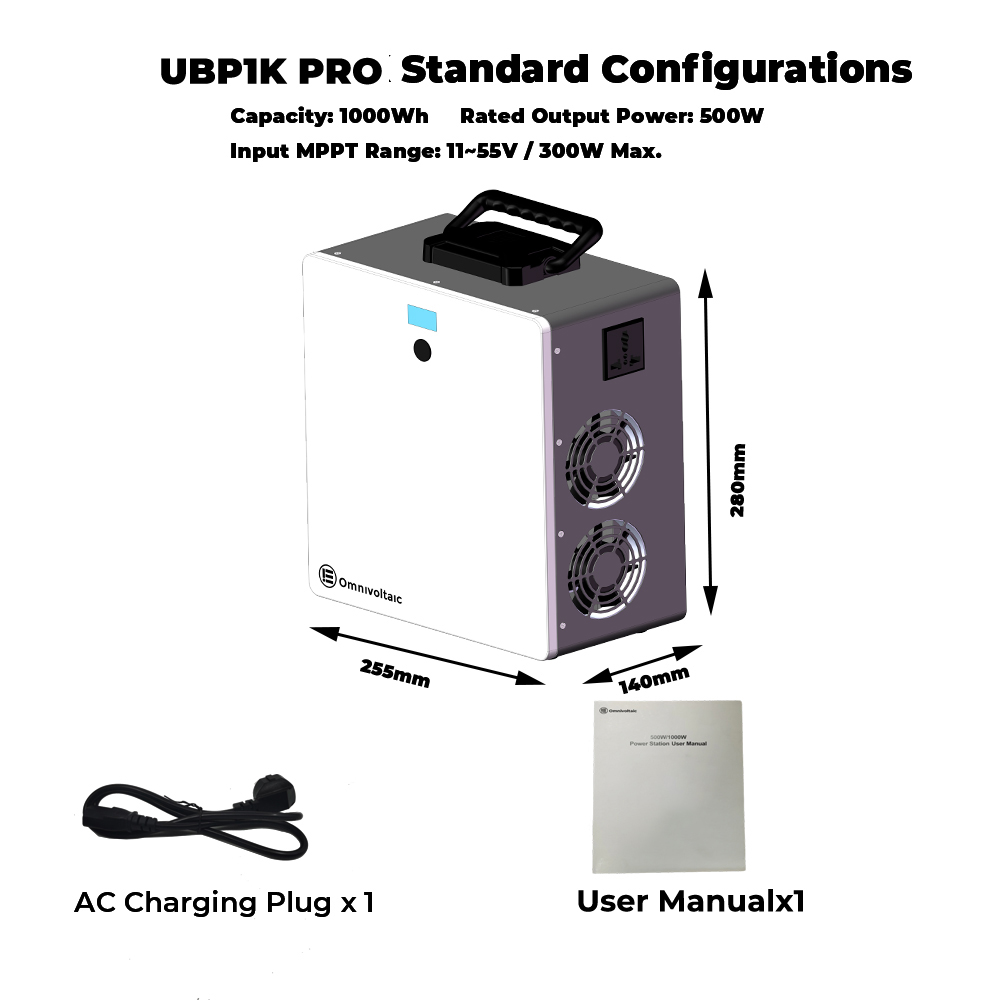

-1000Wh energy capacity with 500W rated output for substantial power needs

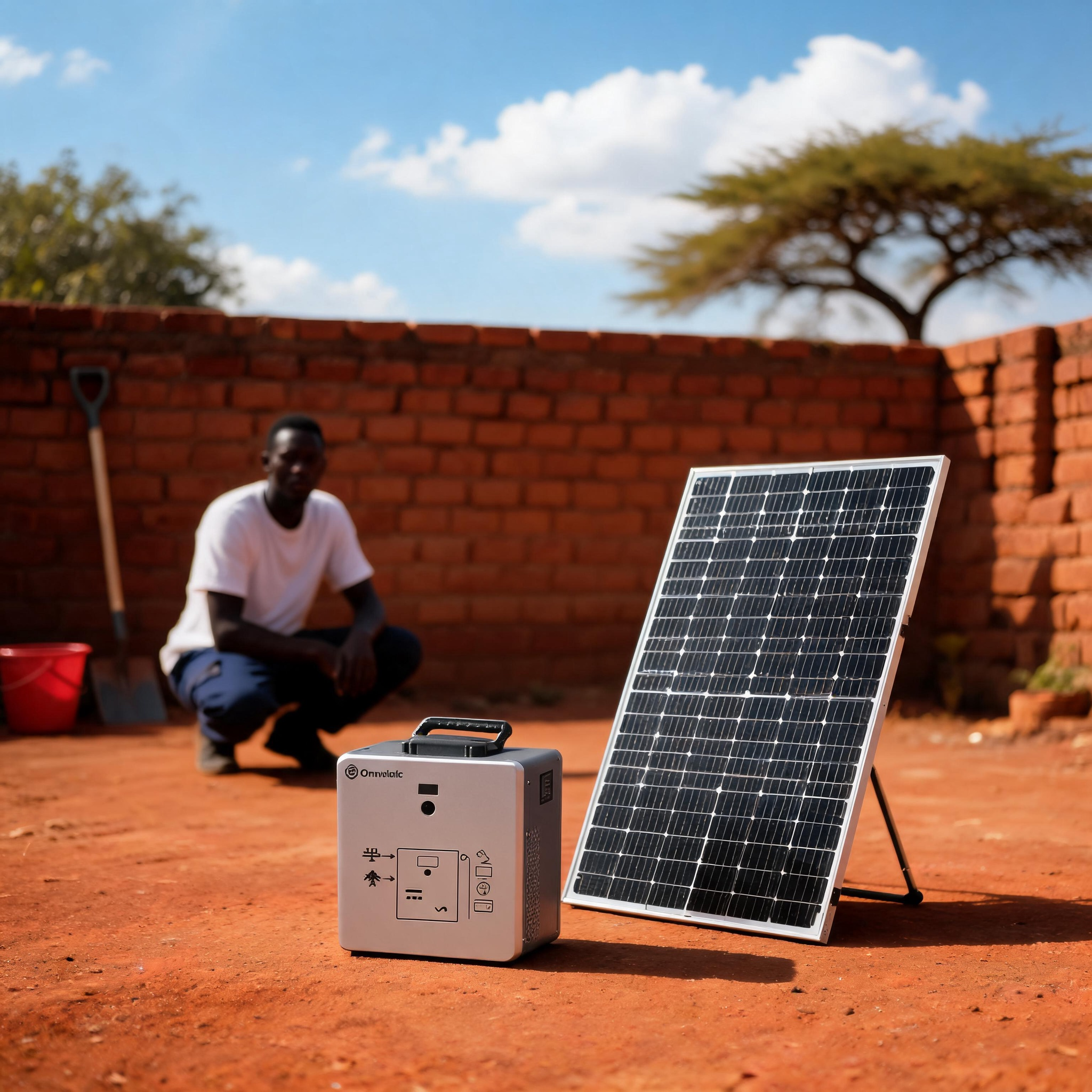

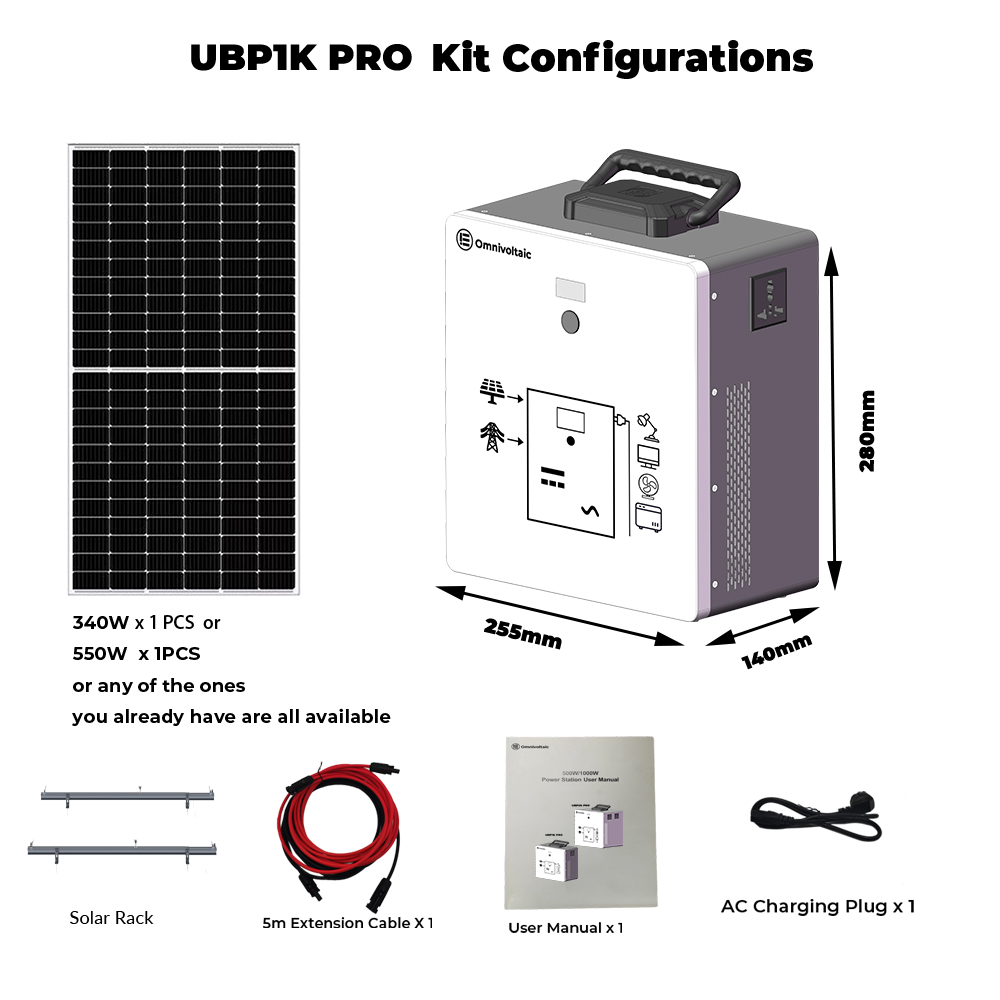

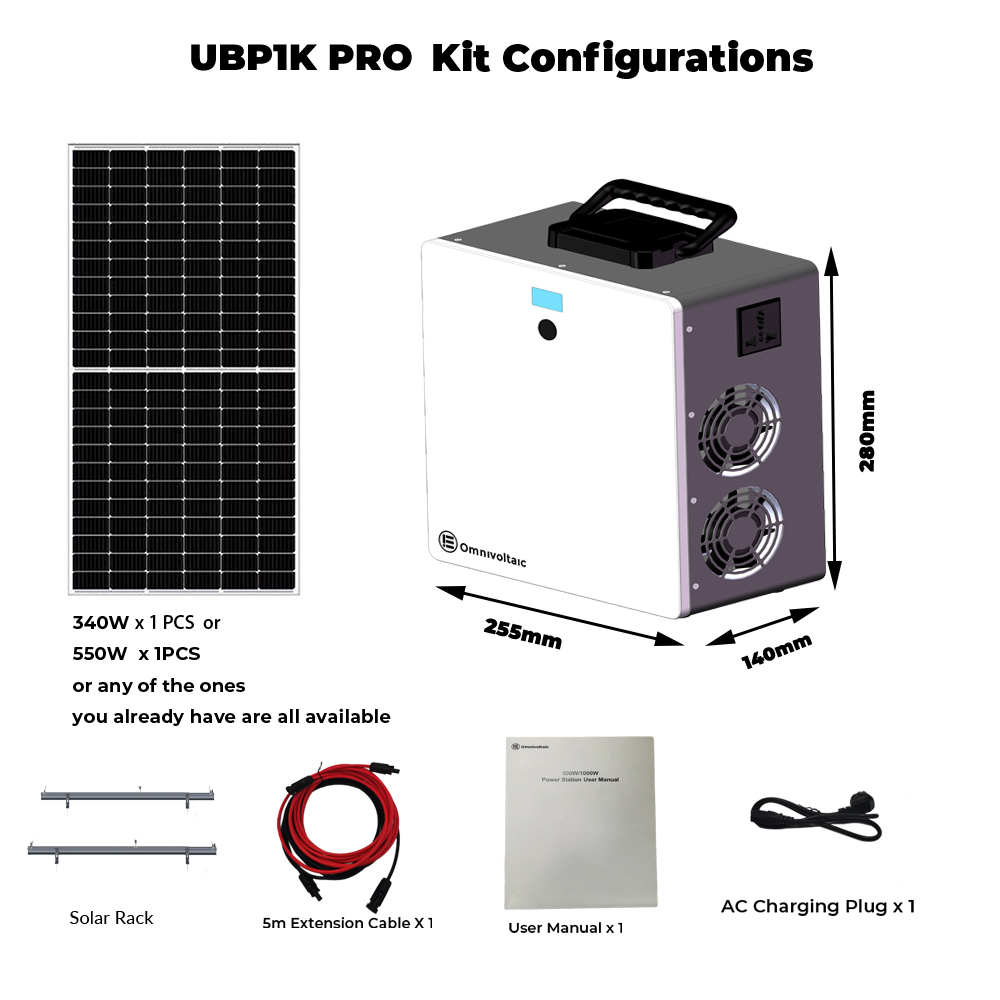

- Easy *charging from solar (340Wp or 550Wp) or grid, with a *portable 8kg design
-Advanced safety features including overcharge and short circuit protection
-PayGo activation technology for flexible payment options
-BLE Apps Support
Product Model: UBP1K Pro-BLE | Check full specifications on datasheet
Available to registered users after login/registration is enabled.
Product Properties
| Property | Value | Unit |
|---|---|---|
| Pv Input Voltage | 11~55 | V |
| Max.pv Input Power | 300 | W |
| Dimension | 335*260*145 | MM |
| Display Type | Enable | - |
| Energy Capacity | 1004.8 | Wh |
| Rated Output Power | 230V/ 500 | W |
| Frequency | 50 | Hz |
| Power | 300 | W |
| Charge Capacity | 314 | Ah |
| Cycle Life | >=6000 cycles @ 80% EOL | - |
| Rated Output Voltage DC | 3.2 | V |
| Battery Chemistry | LiFePO4 | - |
| Cell Type | 314Ah/ 1S | - |

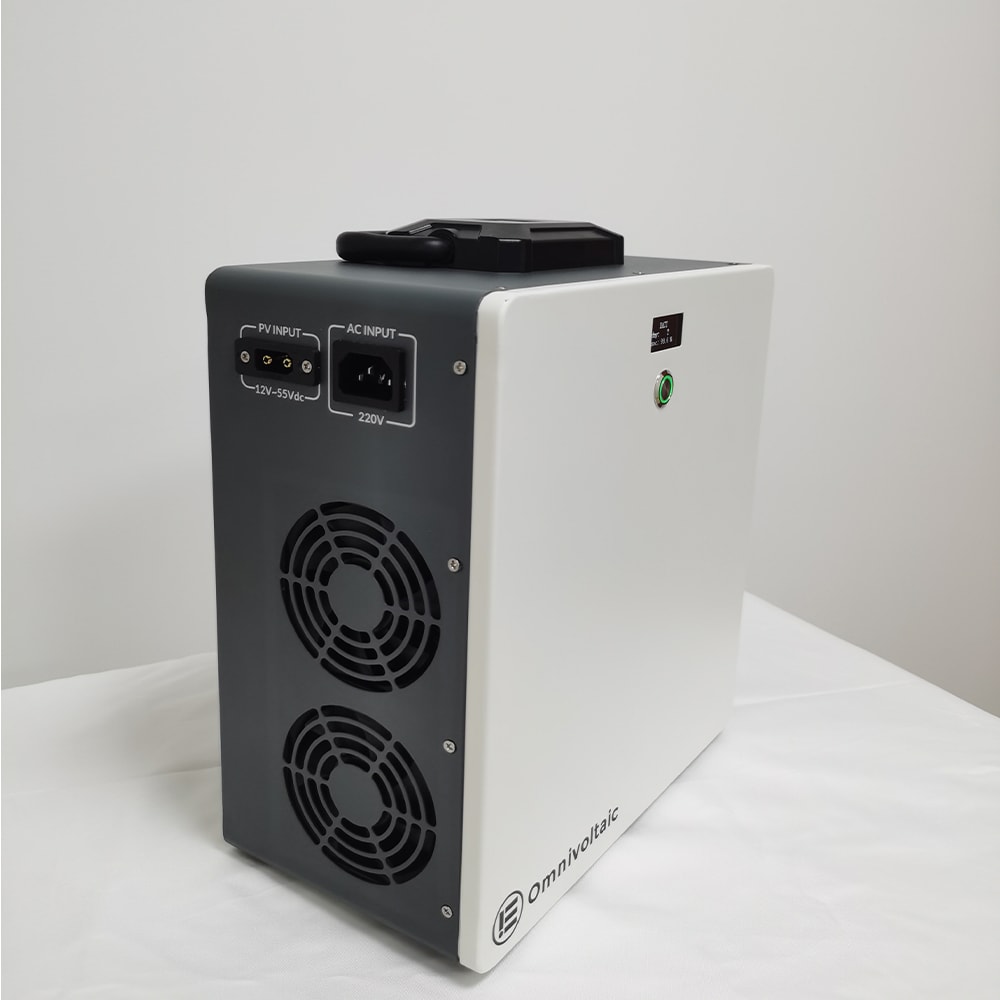

| Charging Port | PV(MC4)/AC(Pin type) | - |
| Discharging Port | Universal AC socket x 1PCS and USB Phone Charging 5v5W X 1PCS | - |
| Output Waveform | Pure sine wave | - |
| Body Material | Metal Case | - |
| Ingress Protection | IP21 | IP |
| AC Efficiency | 90% | % |
| Protection | Over Charge/Over Discharge/Over Current/Short | - |
| Battery Indicator | Remaining Energy | - |
| Temperature Range | -20~60 | °C |
| Temperature Range (C) Operating | Charging: 0~40 °C, Discharge: -20~40 | °C |
| Weight | 11 | kg |
| Dimensions (L x W x H) | 335*260*145 | MM |
