PET-3 Series
Omnivoltaic Series - Electric Three-Wheelers (Passenger & Cargo Tricycles)
The Omnivoltaic PET-3 Series is the new-generation electric passenger tricycle platform for operators who need a smarter, swappable, and more profitable vehicle for daily transport. It launches in two configurations: the compact PET-3S_E6_V1 single-row model with 1+3 seating, and the roomier PET-3D_E6L_V1 double-row model with 1+5 seating.
Built around a 5000W permanent magnet synchronous motor and a 76.8V 100Ah LiFePO4 battery, the PET-3 Series is designed for urban mobility programs, last-mile passenger service, shuttle operations, and fleet deployments across Togo, Nigeria, Kenya, Madagascar, and Benin.
- Battery-swap ready design for fast turnaround and reduced charging downtime
- Smart monitoring support for real-time vehicle and battery tracking
- Low operating cost with electric power replacing fuel spend
- Two body layouts tailored to either compact agility or higher passenger capacity
- Premium driver and passenger features including laminated glass, reversing camera dashboard, LED lighting, keyless anti-theft, and electric wiper
Model overview

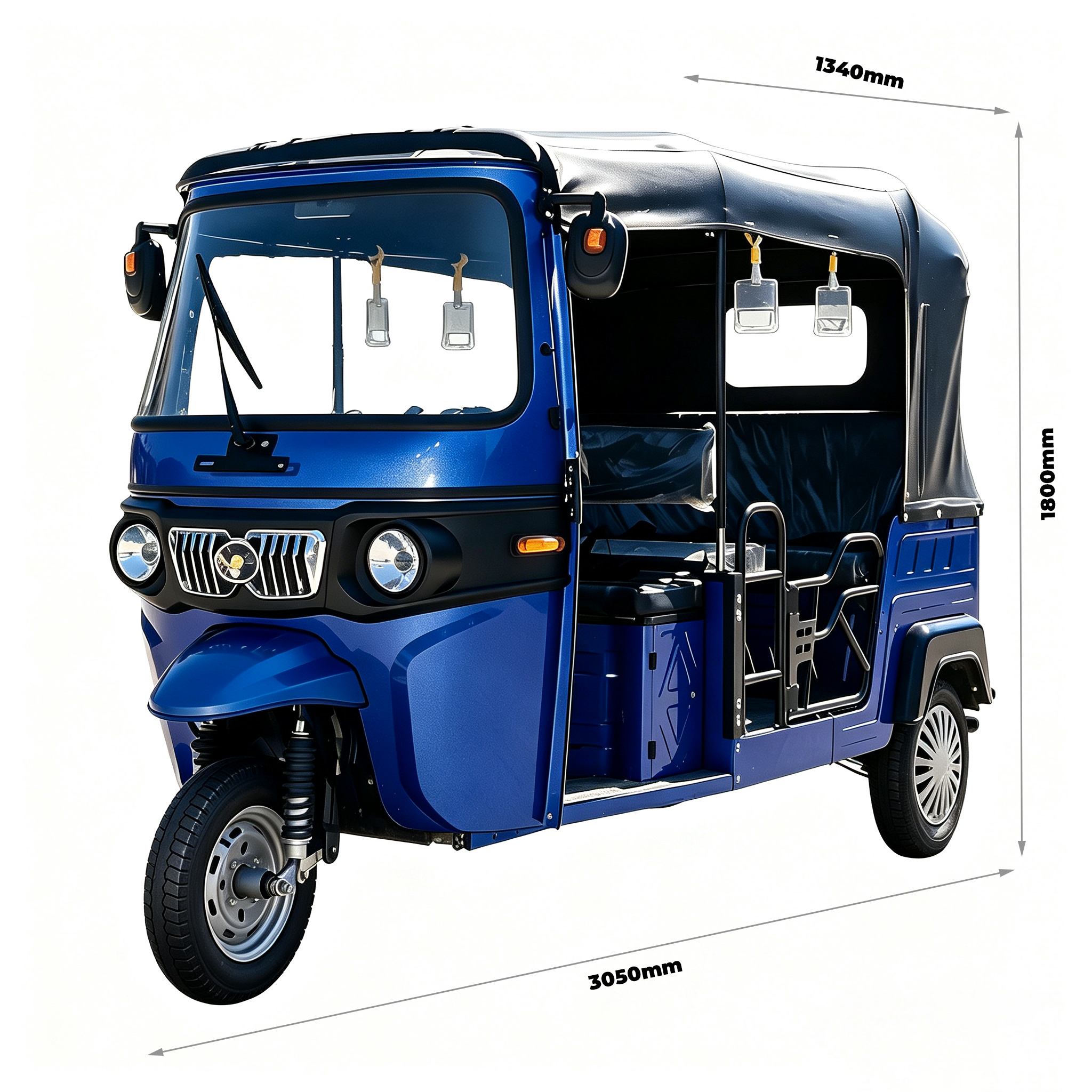

- PET-3S_E6_V1: 2690x1340x1800mm, 410kg, 1+3 passengers, 40 CKD sets per 40ft container
- PET-3D_E6L_V1: 3050x1340x1800mm, 460kg, 1+5 passengers, 36 CKD sets per 40ft container
Shared performance
- 55 km/h top speed
- 80-100 km driving range
- Approx. 1.5 hours charging time
- Up to 600kg load capacity
Available to registered users after login/registration is enabled.
Product Properties
| Property | Value | Unit |
|---|---|---|
| Overall Dimensions | PET-3S_E6_V1: 2690x1340x1800mm / PET-3D_E6L_V1: 3050x1340x1800 | MM |
| Wheelbase | PET-3S_E6_V1: 2005mm / PET-3D_E6L_V1: 2365 | MM |
| Vehicle Weight | PET-3S_E6_V1: 410kg / PET-3D_E6L_V1: 460 | kg |
| Passenger Capacity | PET-3S_E6_V1: 1+3 persons / PET-3D_E6L_V1: 1+5 persons | persons |
| Min. Turning Radius | PET-3S_E6_V1: 1.7m / PET-3D_E6L_V1: 2.1 | M |
| Braking Distance | PET-3S_E6_V1: 3.8m / PET-3D_E6L_V1: 4.6 | M |
| CKD per 40ft Container | PET-3S_E6_V1: 40 sets / PET-3D_E6L_V1: 36 sets | sets |
| Motor | Phi145 5000W permanent magnet synchronous magnetic encoder motor with waterproof connector | motor |
| Controller | 76.8V 120A controller with CAN communication protocol | controller |
| Transmission | Differential gearbox with fully ground gears and silent CV joint drive system | transmission |
| Battery | 76.8V 100Ah Lithium Iron Phosphate (LiFePO4) | V / Ah |
| Charging Time | Approx. 1.5 | Hour |
| Charger | Input AC90V-264V, Output DC48-96V 80A max; three-phase charger optional; plug type depends on destination country | charger |
| Max Speed | 55km/ | km/h |
| Driving Range | 80-100km | km |
| Climbing Ability | Up to 20 degrees | degrees |
| Max Load Capacity | Up to 600kg including passengers and battery | kg |
| Track Width | 1165 | MM |
| Ground Clearance | 320 | MM |
| Braking System | Front 180mm / Rear 220mm oil drum brake with one-pedal three-wheel braking | brakes |
| Front Suspension | Double-arm load-bearing swing arm suspension | suspension |
| Rear Suspension | Independent suspension | suspension |
| Front Tire | 130/70-12 arc vacuum tire | tire |
| Rear Tire | 135/70R12 vacuum tire | tire |
| Dashboard | Third-generation digital multimedia dashboard with 7-inch display and reversing camera | dashboard |
| Headlight | New design LED round headlights | headlight |
| Turn Signals | Front LED square turn signals and rear LED round turn signals | signals |
| Glass | Double-layer laminated glass | glass |
| Roof Cover | High-quality thickened leather roof cover | roof |
| Seat | Premium high-density foam cushion and backrest | seat |
| Floor Mats | Waterproof front and rear floor mats | floor mats |
| Anti-theft System | Multifunctional keyless entry anti-theft system | security |
| Windshield Wiper | Electric windshield wiper | wiper |
| Rear-view Mirror | Rear-view mirrors with integrated turn signals | mirror |
| Horn | Single horn | horn |
| Front Interior Light | Integrated rear-view mirror and roof light | light |
